marketed in 197?
super 8 mm film
lens: Chinon f: 1.3 \ F: 19 mm
lamp: 100 W, 12 V, EFP
pilot lamp: built-in on main
switch, 4 V-0.75 A, KE-030
reel capacity: 180 m
film loading: automatic threading
projection: forward,
reverse
projection speed: 18, 24
fps
sound: magnetic playback on
main sound track
sound mode: mono
amplifier: 2 IC, 6 transistors,
13 diodes
amplifier output: music power 5
W (4 Ohm)
frequency response: ?
sound controls: volume, tone
recording: not available
input terminal: Public Address
(3.5 mm diameter jack)
output terminal: External
Speaker (4-8 Ohm, RCA jack)
built-in speaker: 10 cm
diameter round speaker, 3W (8 Ohm)
motor: DC magnetic motor
power source: 100 V AC, 50/60 Hz
weight: 8200 g
dimensions: 180 (W) x 245 (H) x 340
(L) mm

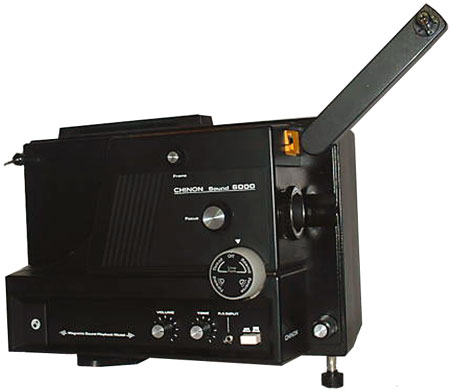

made in Japan by Chinon
