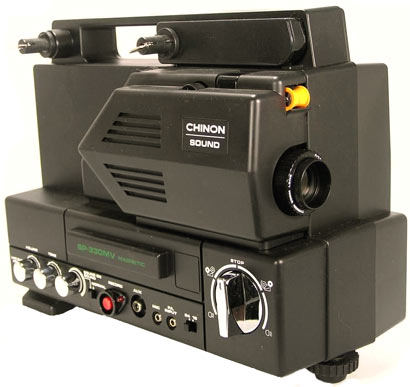

marketed in 197?
super 8 mm film
lens: Chinon Zoom f: 1.3 \ F: 15.5-30 mm
lamp: 100 W, 12 V, EFP
reel capacity: 180 m
film loading: automatic threading
projection: forward,
reverse
projection speed: 18, 24
fps
sound: magnetic playback on
main sound track
sound mode: mono
sound controls: volume, tone,
sound-on-sound
amplifier: 2 IC's, 3
transistors, 6 diodes and 1 LED
amplifier output: 6/15 W (4 Ohm),
rating/max
frequency response: ?
recording: magnetic recording
on main track, sound-on-sound,
fading sound
recording level control: auto
sound-on-sound: adjustable
volume control knob with sound fading control
input terminal: Microphne,
Public Adress,
Auxiliary (300 mV, 1 MOhm)
input jacks: Microphone and PA:
3.5 mini jack; Auxiliary: RCA jack (for Canada and Usa) and 5-pin DIN jack
(for other countries)
output terminal: Monitor/Line-out, External Speaker
output jacks: Monitor/Line-out:
3.5 mm mini jack; Ext Sp: RCA jack (for Canada and Usa) and 2-pin DIN jack
(for other countries)
built-in speaker: 3/5 W (4 Ohm), rating/max
motor: DC servo-motor
electrically controlled
power source:
100-120-130-220-240V AC, 50/60 Hz, 180 W
weight: 5700 g
dimensions: 145 (W) x 228 (H) x 320
(L) mm
made in Japan by Chinon
