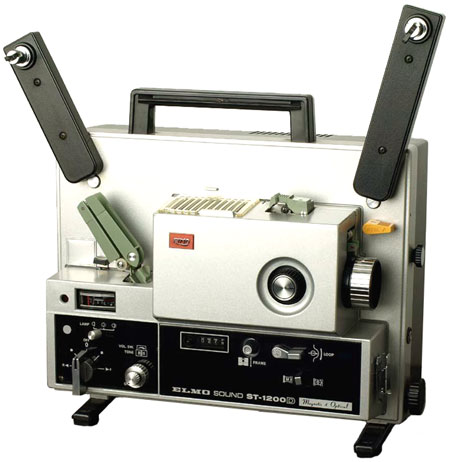

marketed in 1978
super 8 mm film
lens: Elmo Super Zoom f: 1.3 \ F: 15-25 mm
lamp: 150 W, 15 V, EFR
brightness lamp: High, Low
reel capacity: 360 m
projection: forward, reverse, still
projection speed: 18, 24 fps
frame counter: 4 digits
film loading: automatic threading
manual unloading: possible
sound: magnetic and optical playback on main sound track
sound mode: mono
amplifier: transistorized
amplifier output: sinus: 12 W; music power: 15 W (8 Ohm)
frequency response: 50-10000 Hz at 18 fps, 50-12000 Hz at 24 fps
signal/noise ratio: magnetic (min 50 dB), optical (45 dB)
sound control: volume, tone
public adress: yes
exciter lamp: 4 V DC, 0.75 Amp
photoelectric element: solar battery
recording: magnetic recording on main sound track
sound-on-sound: yes
recording level control: ALC
VU meter: recording level meter
input terminal: Microphone (0.3-30mV,10 kOhm), Auxiliar y (0.02-3 V, 10 kOhm)
output terminal: Monitor (16 Ohm), Auxiliary (80-1500 mV, 600 Ohm), External Speaker (9760 mV, 8 Ohm)
built-in speaker: 12.5 cm diameter round speaker, 5 W
built-in cutter: yes
motor: magnetic motor
power source: V AC, 50/60 Hz
weight: 11000 g
dimensions 180 x 340 x 360 mm
made in Japan by Elmo
