marketed in 1970
super 8 mm film
lens: Zoom f: 1.3 \ F: 15-25 mm
lamp: 100 W, 12 V, EFP
maximum loading: 180 m reel
projection: forward, reverse
projection speed: 18, 24 fps, by selector switch
film loading: automatic threading
sound: magnetic playback on main sound track
sound mode: mono
amplifier: 2 IC, 4 Si transistors, 12 Si diodes
amplifier output: ?
frequency response: ?
recording: magnetic recording on main sound track, sound-on-sound
recording level control: auto
input terminal: Microphone (1.5 mV, -66 dB, 1.2 kOhm), auxiliar (300 mV, 470 kOhm)
input jacks: ?
output terminal: Monitor, Auxiliar, External Speaker (8 Ohm/2 W, 4 Ohm/4 W)
output jacks: ?
built-in speaker: yes
motor: DC magnetic motor
power source: 100-120-130-200-220-230-240 V AC, 50/60 Hz
weight: 8200 g
dimensions: 185 x 245 x 340 mm
made in Japan by Chinon

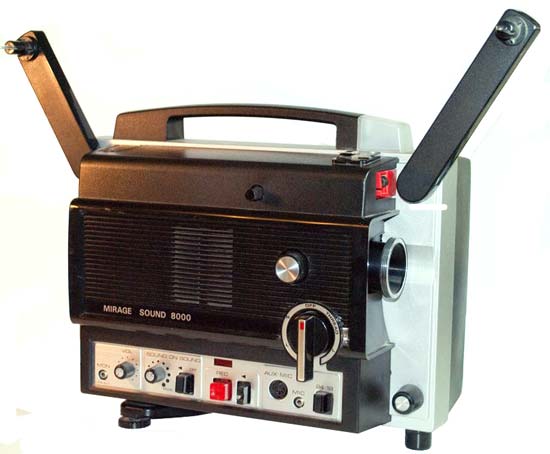

Picture by Edwin van Eck, Tilburg (The Netherlands).
