marketed in 197?
super 8 mm film
lens: ?
lamp: 100 W, 12 V, EFP
reel capacity: 120 m
projection: forward, reverse
projection speed: 18, 24 fps
film loading: automatic reel to reel threading
sound: magnetic playback on main sound track
sound mode: mono
amplifier: ?
amplifier output: ?
frequency response: ?
recording: magnetic recording on main sound track
recording level control: ALL (Auto Level Limiter)
input terminal: Microphone
input jacks: 5-pin DIN plug (Eurepean type)
output terminal: Monitor, Ext Speaker
output jacks: Mon: 3.5 mm diameter jack; Ext Sp: 2-pin DIN plug
built-in speaker: yes
built-in film cutter: yes
motor: electronically governed DC magnetic motor
power source: ? V AC, 50/60 Hz
weight: 7600 g
dimensions: x 230 x 320 mm
made in Japan by Yamawa
This movie projector is the Yelco Sound DS 607.

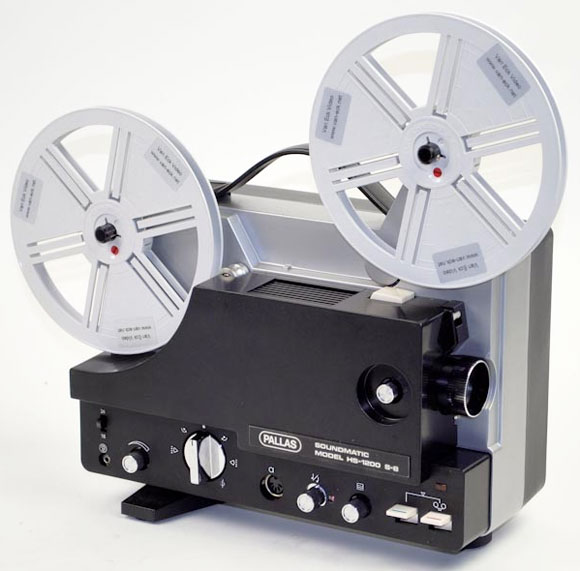

Picture by Edwin van Eck, Tilburg (The Netherlands).
