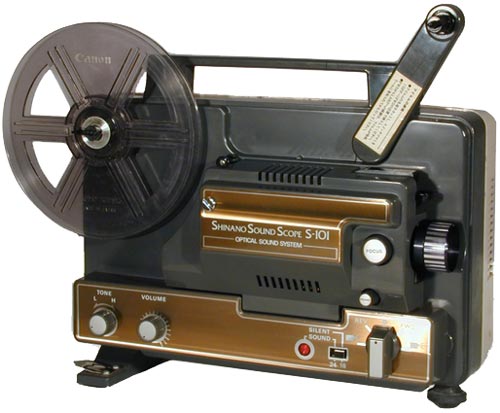

Shinano Sound Scope S-101 Optical Sound System
marketed about 1970
super 8 mm film
lens: ?
lamp: 100 W, 12 V, EFP
reel capacity: 180 m
projection: forward, reverse
projection speed: 18, 24 fps, by selector switch
film loading: automatic threading
sound: optical sound playback on main sound track at 24 fps
sound mode: mono
amplifier output: ?
frequency response: ?
sound controls: volume, tone
amplifier output: max 1.5 W (8 Ohm)
recording: not available
built-in speaker: yes
built-in film cutter: yes
motor: electronically governed DC magnetic motor
power source: 100 V AC, 50/60 Hz, 150 W
weight: ?
dimensions: 180 x 280 x 330 mm
made in Japan by Copal
