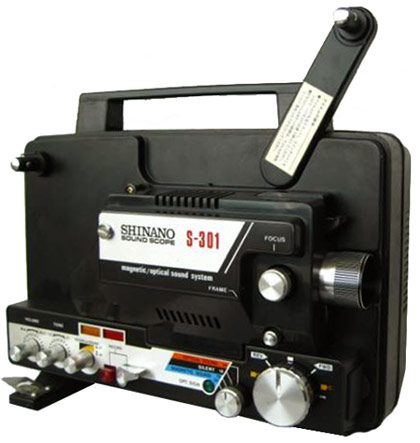

Shinano Sound Scope S-301 Magnetic/Optical Sound System
marketed in 197?
super 8 mm film
lens: Shinano Zoom Lens f: 1.3 \ F: 15-25 mm
lamp: 100 W, 12 V, EFP
reel capacity: 180 m
projection: forward, reverse
projection speed: 18, 24 fps, by selector switch
film loading: automatic threading
sound: magnetic and optical playback on main sound track
sound mode: mono
amplifier output: music power 6 W (8 Ohm)
frequency response: ?
sound controls: volume, tone, sound-on-sound
recording: magnetic recording on main sound track
sound-on-sound: yes
input terminal: Microphone, Auxiliary
output terminal: Monitor, External Speaker (8 Ohm)
built-in speaker: 10 cm diameter round speaker
motor: electronically governed DC magnetic motor
power source: 100 V AC, 50/60 Hz, 150 W
fuse: 2 Amp
weight: 8800 g
dimensions: 180 x 260 x 320 mm
made in Japan by Copal
