marketed in 1962
Toei 8 mm film format (1)
lens: f/1.5
lamp: 150 W, 21.5 V, ELV
reel capacity: 180 m
film loading: manual threading
projection: forward
projection speed: 24 fps
sound: optical playback on main sound track
sound mode: mono
amplifier: 1 transistor, 2 silicon diodes, 2 double valves
amplifier output: 6 W
frequency response: ?
exciter lamp: 6 W, 6 V
cell: Toshiba OS-13 photo-transistor
distance picture/sound: 52 frames (2)
recording: not available
output terminal: External Speaker
built-in speaker: yes
motor: magnetic motor
power source: 100 V AC, 50/60 Hz
weight: circa 20 lbs
dimensions: ?
made in Japan by Toei

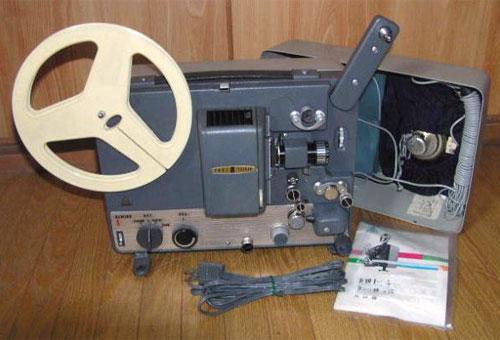

This cine projector was made in two sound versions: optical only and combined magnetic-optical. Print advertisement of magnetic-optical version, here
(1) In 1961, as there were no standards for the 8 mm track width and position, Toei had chosen to put the track on the non-perforation edge of the film, and used a track 0.7 mm wide (from Amateur Cine World, United Kingdom, January 17, 1963).
(2) The same linear distance as on 16 mm optical sound.
