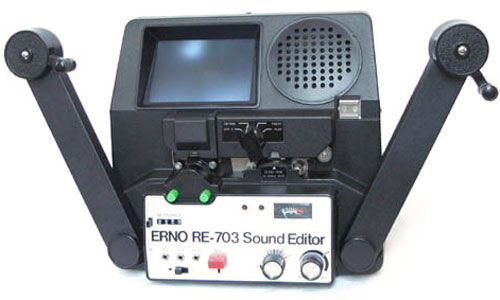

Erno RE-703 Sound Editor

marketed in 197?

super 8 mm film

lens: f: 3.5 \ F: 18.9 mm

magnifiation: 19x

screen size: 75 x 100 mm

lamp: 10 W, 6 V

reel capacity: 180 m

film loading: manual threading

film transport: motor and manual

projection: forward, reverse, still

projection speed: 18, 24 fps, with speed adjustment

frame counter: yes

accessory shoe: yes

sound: magnetic playback on main sound track

sound mode: mono

amplifier: 1 IC, 2 transistors, 3 diodes

amplifier output: 1 W

wow and flutter: <0.5 %

signal/noise rating: <40 dB

frequency response: 100-6000 Hz

recording: magnetic recording on main sound track

VU meter: recording level meter

input terminal: Microphone, Auxiliary

output terminal: Monitor, External Speaker (8 Ohms)

terminal jacks: mini jacks

built-in speaker: 9.2 cm diameter round speaker, 8 Ohm

accessory shoe: yes

film drive motor: DC magnetic motor, 12 V

power source: 110-220 V AC, 50/60 Hz, 40 W

weight: 215 x 241 x 270 mm

dimensions: 5000 g

made in Japan by Sansei Koki
