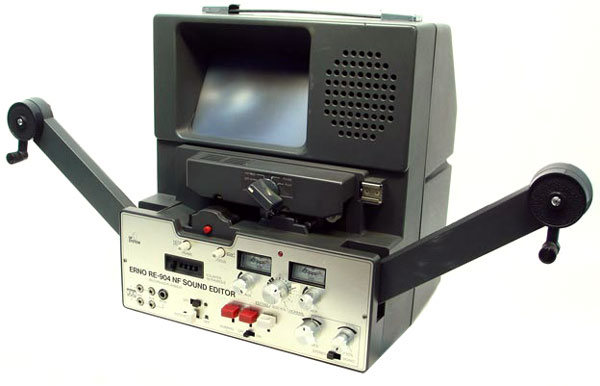

Erno RE-904 NF Sound Editor

marketed in 197?

super 8 mm

lens: f: 3.5 \ F: 23 mm

magnification: ?

screen size: color corrected 5.51 x 4.14 inches

screen diagonal: 6 inches

lamp: 10 W, 6 V

reel capacity: 240 m

film loading: manual threading

film transport: capstan drive pinch roller or manual by crank

projection: forward, reverse

projection speed: 18, 24 fps,

projection speed fine control: adjustable plus or minus 2 fps

frame counter: yes

NF system: Non-Flicker system with 16-face polygon optical glass prism

sound: magnetic playback on both sound tracks

amplifier: 6 Solid State IC, 2 transistor, 8 diode

amplifier output: 1W, 8 Ohm

VU meter: 2 (Rigth, Left), recording level meters

recording system: multi single and stereo magnetic recording on main and balance track

recording level: A.A.L. (Automatic Level Limiter) single and stereo recording on the main and balance track

input terminal:

- 2 MIC with mini jack - 60 dBm input impedance 600 Ohm

- 2 AUX with mini jack - 20 dBm input impedance 50K Ohm

output terminal:

- MONI with 1/4" jack for stereo headphone 8 Ohm

- 2 EX SP with mini jack 8 Ohmon 1W

built-in speaker: yes

accessory shoe: yes

film drive motor: DC magnetic motor; DC22V with Function Generator

power source: 110/120 or 220/240 V AC, 50/60 Hz, 40 W

weight: ?

dimensions: ?

made in Japan by Sansei Koki
