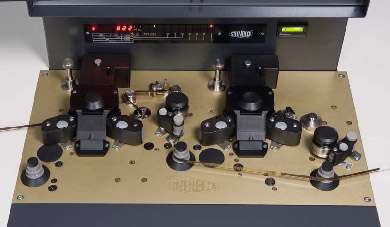

Steenbeck ST-822

marketed in 2010

standard 8 mm \ super 8 mm film

plates: 4, 2 for Super 8, 2 for standard 8

fast and accurate checking of film and sound

2 screens: 230 x 160 mm (approx), full frame projection

lamp: 100 W, 12 V

lens: ?

magnification: ?

projection speed: variable, 0 to 100 fps (approx)

sync speed: switchable sync speeds 18 and 24 fps

film counter: electronic universal processor counter

display: display for actual running speed of film

sound: both 8mm formats with COMMAG sound mono

super 8: 2 channels for main and balance track, with two faders

standard 8: 1 channel

amplifier: ?

amplifier output: ?

frequency response: ?

sound controls: treble, bass and master volume potentiometers

recording: not available

output terminal: headphone (1/4" jack), two balanced XLR mono outputs

built-in speakers: two way high quality loudspeakers

film drive motor: magnetic motor

power source: 100-240 V, 50/60 Hz, 3 Amp

weight: ?

dimensions: 1098 (w) x 1433 (L) x 800 (from floor to table)

made in Holland by Steenbeck
